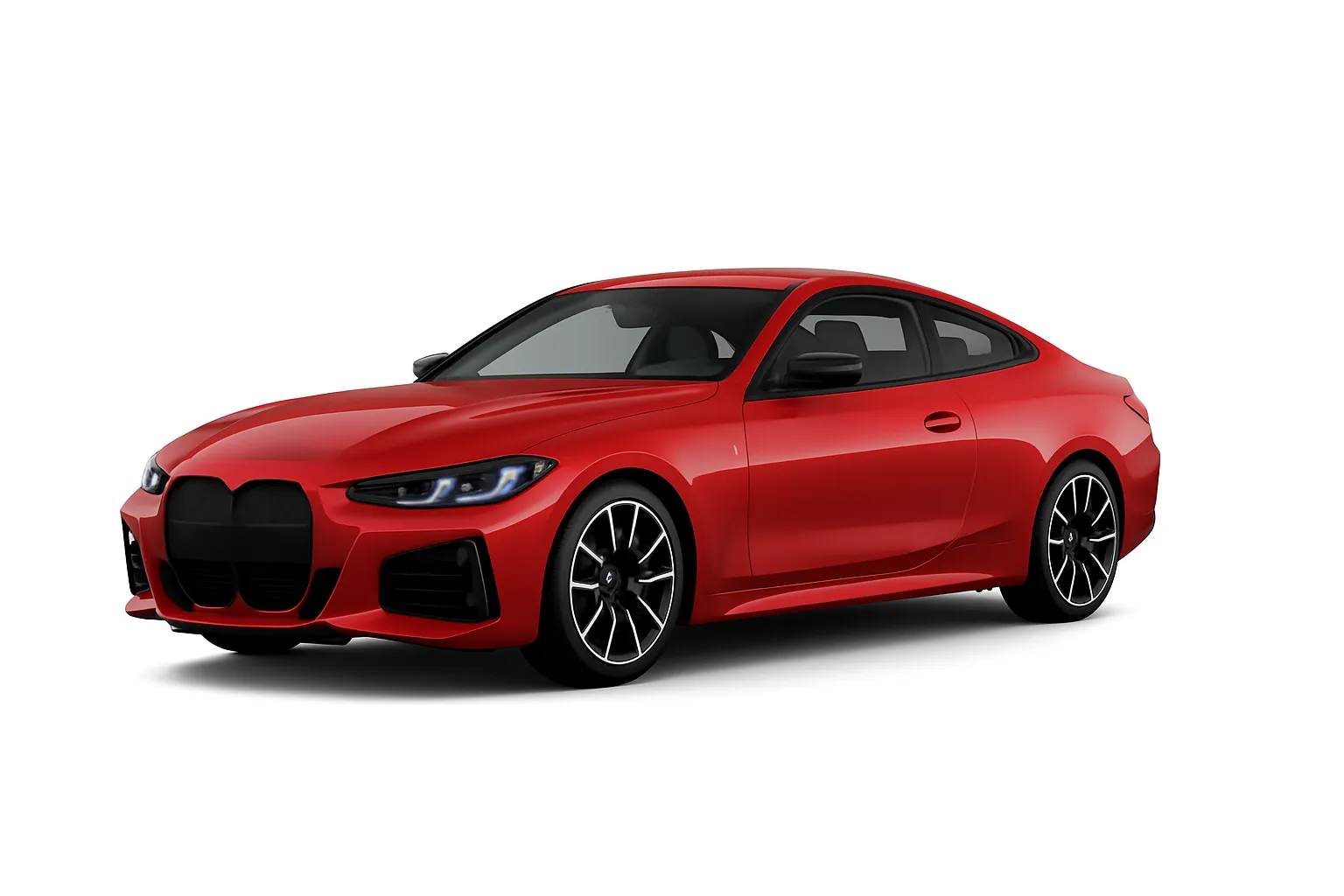

BMW 4 Series G22/G23/G26/G82 iDrive 8 Mileage Blocker

Overview

The BMW 4 Series iDrive 8 mileage blocker is a dedicated electronic module for G22, G23, G26, and G82 vehicles equipped with the compatible BMW Curved Display.

Designed around the electronic configuration of these newer 4 Series models, the module provides selectable settings that control how additional mileage is recorded. Its microcomputer processes mileage-related signals while maintaining normal speedometer and supported driver-assistance functions when correctly installed.

The plug-in design uses the vehicle’s existing connections without cutting or soldering factory wiring. Unlike modules fitted directly behind conventional instrument clusters, this curved-screen version connects through a white plug behind the lower dashboard guard or trim panel.

Compatibility

The BMW 4 Series mileage blocker is listed for:

• BMW 4 Series G22
• BMW 4 Series G23
• BMW 4 Series G26
• BMW M4 G82
• Model years: 2023–2026
• Infotainment system: BMW iDrive 8
• Instrument cluster: Compatible Curved Screen / Curved Display
• Dashboard configuration: Must match the product images

BMW 4 Series vehicles within these model years can have different electronic and instrument-display configurations. The chassis code alone is therefore insufficient to confirm whether the curved-screen module is suitable.

Check the production year and compare your dashboard with the product photographs, particularly the Curved Display layout.

The G26 designation also appears in BMW’s i4 range, which has a separately listed BMW i4 G26 iDrive 8 mileage blocker. Select the module according to the exact vehicle application rather than assuming products with a shared chassis designation are interchangeable.

Other compatible BMW models can be found in the BMW mileage blocker collection.

For assistance confirming the correct configuration, contact Smelecom with your VIN, model year and a clear photograph of your instrument cluster before purchasing.

Key Features

• BMW 4 Series-specific module: Developed for supported G22, G23, G26 and G82 applications with the iDrive 8 Curved Display.
• Plug-and-play fitting: Connects through existing vehicle plugs without cutting, splicing or soldering the original wiring.
• OEM-style connectors: Uses original-type connections for a secure, factory-style fit.
• Four operating settings: Provides stopped, 10%, 50% and normal 100% mileage-recording modes.
• BC-button control: Allows operating settings to be changed using the vehicle’s existing BC button, including while the vehicle is moving.
• No mileage catch-up: The odometer does not jump forward to compensate for unrecorded distance when the module is removed.
• Last-setting memory: Remembers the previously selected operating setting.
• No dashboard errors: Designed to avoid warning lights and fault codes when correctly installed.
• Retained vehicle functions: Normal speedometer and supported driver-assistance functions continue to operate.
• Removable connection: Can be disconnected without permanent changes to the original wiring.

How Does the BMW 4 Series Mileage Blocker Work?

The BMW 4 Series mileage blocker contains a compact microcomputer that filters mileage-related signals through its connection to the vehicle’s electronic wiring.

The selected operating mode determines whether new mileage is stopped, partially recorded or counted normally. The module does not erase or reverse distance already stored by the vehicle.

Mode selection is controlled through the BC button, with the hazard warning lights identifying the chosen setting. Audible buzzer signals provide additional information about filtered mileage stored by the module.

Returning to the normal operating mode restores standard mileage recording.

Quality and Testing

Every BMW 4 Series module is programmed and tested in-house before dispatch for its specified vehicle application.

The electronic components are designed for long-term use within the dashboard environment. The unit is supplied with matching vehicle connections and step-by-step fitting instructions.

Although no cutting or soldering is required, fitting involves access to BMW dashboard electronics. An experienced auto electrician or automotive specialist is recommended for customers unfamiliar with these systems.

General preparation information is available through Smelecom’s mileage blocker installation support. Follow the supplied vehicle-specific instructions for the correct iDrive 8 connection arrangement.

Shipping and Availability

• UK and worldwide shipping available.
• Most in-stock orders are dispatched the same day.
• Next-working-day UK delivery options are available at checkout for eligible orders.
• International shipping options depend on the destination.

Delivery arrangements and return conditions are covered in Smelecom’s delivery, refunds and returns policy.

Vehicle-Specific Guidance

The G22, G23, G26 and G82 curved-screen applications use a connection behind the lower dashboard trim instead of requiring access behind the Curved Display itself.

The relevant fitting details are:

• Dashboard system: BMW iDrive 8 Curved Display
• Connection point: White plug behind the lower guard or trim panel
• Display removal: Not required
• Connection type: Matching vehicle and module plugs
• Initial check: Lock the vehicle for approximately two minutes after installation

Locate the correct white plug using the supplied fitting photographs before disconnecting any vehicle wiring.

Do not remove the Curved Display to access this connection. If your vehicle’s connector or dashboard arrangement differs from the supplied images, confirm the correct application before proceeding.

Installation

The BMW 4 Series iDrive 8 module is fitted using the white connector behind the lower guard or dashboard trim panel.

Follow the vehicle-specific fitting instructions:

1. Switch off the BMW and allow the electrical system to shut down.
2. Remove the lower guard plate or trim panel identified in the supplied fitting images.
3. Locate the white plug behind the lower trim area and carefully disconnect it.
4. Attach the module plugs to the matching vehicle-side connections.
5. Connect the vehicle’s original white plug to the corresponding module connector.
6. Check that all connectors are correctly oriented and fully seated.
7. Route and secure the wiring to prevent pinching, trapping or strain.
8. Refit the lower guard plate and surrounding dashboard trim.
9. Close all vehicle doors and lock the BMW for approximately two minutes.
10. Unlock and start the vehicle, then check the Curved Display and normal vehicle functions.

Important: Never force a connector that does not fit. Check its orientation against the supplied fitting images before continuing.

Activation and Operating Modes

The BMW 4 Series G22/G23/G26/G82 iDrive 8 mileage blocker provides four operating modes. The hazard warning lights indicate the selected setting.

Mode 1: Mileage Recording Stopped

• The hazard warning lights flash twice.
• New mileage recording stops while this setting is active.

Mode 2: 10% Mileage Recording

• The hazard warning lights flash three times.
• The module records 10% of the distance travelled.

Mode 3: 50% Mileage Recording

• The hazard warning lights flash four times.
• Mileage is recorded at 50% of the travelled distance.

Mode 4: Normal Operation

• The hazard warning lights flash once.
• Standard mileage recording continues at 100%.

Activation Sequence

Start the vehicle before changing operating modes.

Press and hold the BC button for six seconds to advance to the next setting. Repeat the six-second hold each time you want to cycle to another mode.

The hazard warning lights provide visual confirmation of the selected mode.

Buzzer Confirmation

The module also uses audible signals to indicate filtered mileage stored by its system.

• One buzzer signal represents approximately 5,000 km.
• Two signals represent approximately 10,000 km.
• Further signals correspond to additional increments of approximately 5,000 km.

Follow the supplied operating instructions when interpreting these indications.

Returning to Normal Operation

Continue cycling through the settings by holding the BC button for six seconds until Mode 4 is selected.

A single flash from the hazard warning lights confirms the normal 100% mileage-recording setting.

Post-Installation Troubleshooting

If the BMW Curved Display remains off following installation, close all vehicle doors and lock the car for approximately five minutes.

Unlock the vehicle and check whether the display illuminates normally.

Engine Warning Light

The supplied product instructions describe moving the vehicle, stopping, and switching the engine off approximately three to five times if a temporary engine warning appears after installation.

The warning should normally clear following this sequence. A suitable diagnostic tool may also be used where required.

If the warning remains, have the vehicle’s electronic system checked by a qualified specialist.

Outside Temperature Shows -40°C

The product instructions identify a temporary outside-temperature reading of -40°C as another possible post-installation issue.

They describe repeating the move, stop and engine switch-off procedure approximately three to five times. The temperature display should then return to normal.

A suitable diagnostic tool may also be required if the reading remains incorrect.

Persistent warning lights or abnormal electronic behaviour should receive professional attention.

Important Information

The BMW 4 Series mileage blocker is intended for the specified G22, G23, G26 and G82 applications equipped with the compatible iDrive 8 Curved Display.

The module controls new mileage recording but does not alter mileage previously stored in the vehicle.

Vouchers cannot be used to purchase curved-screen products.

Customers are responsible for ensuring that the purchase, installation and use of the module comply with all applicable laws and regulations. Any discrepancy between actual distance travelled and recorded mileage must be disclosed where legally required.

For questions about BMW 4 Series compatibility, Curved Display configurations or fitting requirements, contact the Smelecom team before ordering.
