Ford Transit Mileage Blocker

Overview

The Ford Transit mileage blocker is a vehicle-specific plug-in module designed for compatible Ford Transit applications.

It controls new mileage recording while the module is active and connects through the vehicle’s existing wiring without permanent modifications such as cutting or soldering.

Compatibility depends on the exact vehicle configuration. Compare your instrument cluster and connector with the product information and images before ordering.

This product is supplied strictly for authorised off-road, dyno testing, vehicle development, motorsport and other permitted applications.

Compatibility

The Smelecom Ford Transit mileage blocker is listed for:

• Ford Transit
• Model years: 2018 onwards

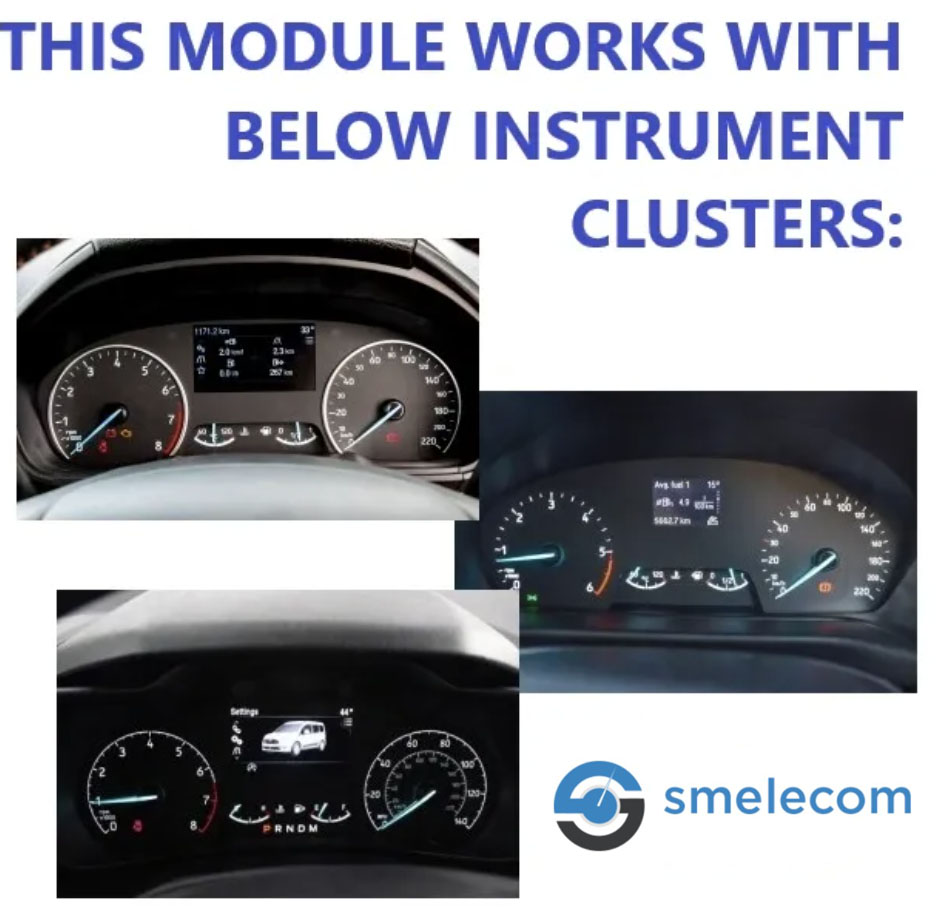

• Vehicles matching the instrument-cluster display shown in the product images

Confirm your model year, vehicle variant, instrument cluster and connector configuration with Smelecom before ordering. Do not assume compatibility from the model name alone.

If you are unsure which version applies to your vehicle, contact Smelecom with your VIN, model year and a clear photograph of your dashboard before ordering.

Key Features

• Vehicle-specific design: Developed for the listed Ford Transit application.
• Plug-and-play installation: Connects through the supplied vehicle connection without cutting, splicing or soldering the original wiring.
• OEM-style connectors: Uses compatible plug connections for a secure installation.
• Switchable operation: Allows the module to be changed between its available operating settings.
• Easy removal: The plug-in design allows the module to be disconnected without permanently modifying the factory wiring.
• Last-setting memory: The module retains its previous operating setting where supported.
• No alteration to previously recorded mileage: The module does not erase or roll back mileage that was already recorded.

How Does the Ford Transit Mileage Blocker Work?

The Ford Transit mileage blocker connects through its supplied plug-in connection and controls new mileage recording while the module is active.

It does not change mileage that was already stored in the vehicle. When returned to its normal operating setting or removed, the vehicle resumes its standard mileage-recording operation.

The exact operation depends on the vehicle configuration and selected module. Follow the instructions supplied with the specific product.

Quality and Testing

Each module is prepared for its specified Ford Transit application and checked before dispatch.

The kit includes installation instructions. If you are unfamiliar with vehicle electronics or instrument-cluster connections, professional installation is recommended.

For general fitting information, see the Smelecom mileage blocker installation guide.

Shipping and Availability

• UK and worldwide shipping available.
• Most in-stock orders are dispatched the same day.
• Next-working-day UK delivery options may be available at checkout for eligible in-stock orders.
• International delivery options are available depending on destination.

Installation

The module is designed for plug-and-play installation behind the instrument cluster. Follow the supplied fitting instructions for the specific Ford application.

The general installation process is:

1. Switch the ignition off and allow the vehicle’s electrical system to shut down.
2. Access the instrument cluster using the correct Ford model-specific trim-removal procedure.
3. Disconnect the original cluster connector.
4. Connect the module inline between the vehicle loom and instrument cluster using the matching plug connections.
5. Make sure all connectors are fully seated.
6. Secure the module and wiring away from moving parts, sharp edges and areas where the loom could become trapped.
7. Refit the instrument cluster and trim.
8. Switch the vehicle back on and confirm normal speedometer, cruise-control and dashboard operation.

Important: Dashboard connector type and access can vary by Ford model and year. Confirm the applicable configuration before installation.

Activation and Operating Modes

The product information specifies two operating modes.

Mode 1: Mileage Blocked

• One hazard/cluster blink confirms activation.
• The odometer freezes.
• Actual vehicle speed remains displayed.
• Cruise control continues to work.

Mode 2: Normal Operation

• Two hazard/cluster blinks confirm normal operation.
• Mileage recording and speedometer operation return to normal.

Activation Sequence

The product information gives two possible activation methods:

• Press Return 3 times, or
• Pull the high-beam lever 4 times.

Repeat the same sequence to return to normal operation, according to the supplied instructions.

Follow the instructions supplied with your specific module to identify the correct control method.

Important Information

This product is supplied strictly for off-road, motorsport, dyno testing, vehicle development and tuning purposes.

The customer is responsible for ensuring that the purchase, installation and use of the mileage blocker comply with all applicable laws and regulations in their country or region.

If you have questions about Ford Transit compatibility, instrument-cluster configuration or installation, contact the Smelecom team before placing your order.
